Redirect Printing configuration



This page covers the different options about configuring Redirect Printing in the Black Ice Printer Driver.

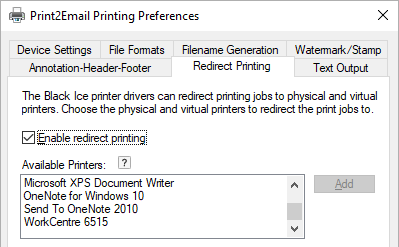

Enable redirect printing



The Enable redirect printing checkbox enables or disables the redirect printing feature to one or more printers.







Available Printers



Available Printers list contains the printers that can be selected as redirected printers. These printers are the locally installed printers on the PC, and the shared printers through the network. Select a printer and click Add to add it to the redirected printers list.

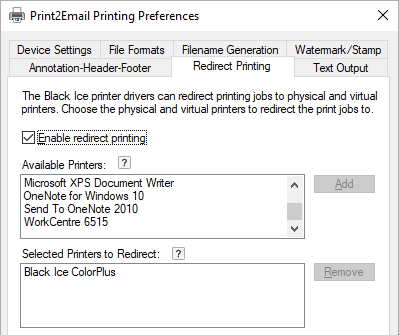

Selected Printers to Redirect



The Selected Printers to Redirect list contains the printers that are selected as redirected printers. These printers are not listed in the Available Printers list. To remove a redirected printer, select the printer and click Remove. Label printers can also be specified as redirected printers. Black Ice Printer Drivers can handle certain special paper sizes required by label printers. For more information on specifying paper sizes, refer to the Device Settings Tab section.







Use number of copies



If Use number of copies enabled, the Printer Driver will ignore the number of copies in the printing application and send the number of copies specified in the Printer Drivers settings under Redirect Printing tab to the specified redirect printers.







Collated/Uncollated



If Use number of copies enabled, the Printer Driver will ignore the Collated/Uncollated settings from the printing application, and use the setting specified in the Printer Driver.



Collated printing will print page documents after each other in proper order, while uncollated printing will print the first page copies, then the second page copies, and so on, as on the explanation diagram below.



http://blackice.com/Help/Tools/PrinterDriverHelps/Monochrome/Webhelp/Monochrome_PrinterDriver_Manual_files/image336.jpg

(The numbers on the diagram indicates the page number of the copy)





Scale to physical printable area or page



Scale to printable area: scales the printed page down by the size of the physical margin of the target printer, so content very close to the edge of the page can still be printed and nothing will be cut off. This is the default setting.



Scale to physical page size: scales the printed page to the physical size of the page, ignoring the target printer’s physical margins. This means the output will be the exact same size as when printing directly to the target printer. Content outside the physical margins of the target printer is cut off.



http://blackice.com/Help/Tools/PrinterDriverHelps/Monochrome/Webhelp/Monochrome_PrinterDriver_Manual_files/image337.png

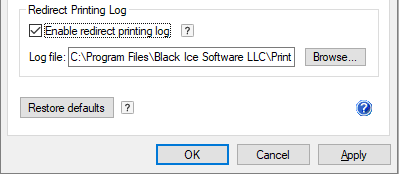

Enable redirect printing log

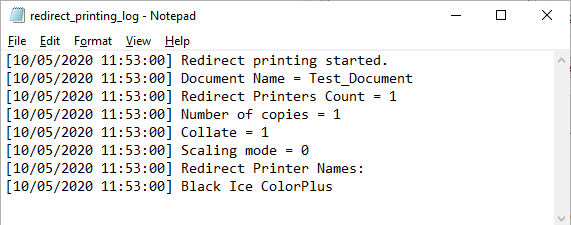

Enables or disables the log file generation specifically for redirect printing. Log filename and location can be specified.  The redirect printing log file contains the following information:



·         Redirect printing start time

·         Printed document name

·         Redirect Printers Count (Number of printers configured to redirect)

·         Number of copies

·         Scaling mode

·         Redirect Printer Names

·         Printed pages

·         Redirect printing finished time

·         Collated/Uncollated







NOTE: Select a place for the logs where all printer driver users have permission to write.



NOTE: Environment variables can also be used to specify the directory.
