The following list covers the supported TIFF file formats:
TIFF JPEG
TIFF Uncompressed
TIFF Group 3, 1 Dimension
TIFF Group 3, 1 Dimension with Fillbits
TIFF Group 3, 2 Dimension
TIFF Group 4
TIFF Packed
TIFF Lempel-Ziv & Welch
TIFF for CISCO
TIFF for Dialogic boards
TIFF for NMS boards

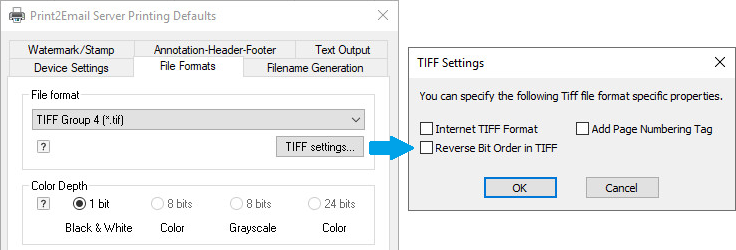

The following settings are only available for TIFF files.
· Internet TIFF format - If TIFF file format is selected as the output image format and this box is checked, the driver creates a TIFF file that is compatible with the requirements listed in Chapter 3 of RFC 2301 File Format for Internet Fax (which is not part of this document). Chapter 3 of RFC 2301 File Format for Internet Fax lists the required tags for black-and-white faxes. The extra tag the driver includes in the TIFF file if this flag is checked is NEWSUBFILETYPE.
· Reverse bit order in TIFF - If this box is checked, the driver saves TIFF images with reverse bit order and also sets the value of the FILLORDER tag in the image file to Reverse. GammaLink-compatible TIFF output requires this setting to be checked, because they can only send TIFF images with reverse bit order.
· Add Page Numbering Tag - If this box is checked, the driver sets the page number tag of every page in the output TIFF file.
