A conversion profile is a predefined printer driver configuration to produce the desirable output format, for a specific task.
List of the available profiles

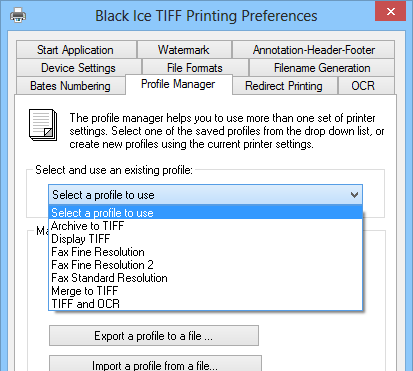

To see the available conversion profiles of a Black Ice Printer Driver, go to Control Panel > Printers and Devices > right click on the selected Black Ice Printer Driver > Printing Preferences > Profile Manager Tab and click on the dropdown list to see the available profiles. When specifying the profile, in the Auto Print INI file, use the Profile name displayed in the Profile Manager Tab dropdown list:
Using not listed profiles
To create a new profile or add new profiles that are not installed with the driver, first import a profile into the driver from the Profile Manager tab, then the imported profile can be customized by changing the printer driver configuration. For technical details for creating a profiles please see: Profile Manager tab of the Black Ice Printer Drivers.
Available predefined profiles in Black Ice Printer Drivers:
|
Profile description |
Available in the listed Black Ice printer drivers |
|
Convert to Fax Fine Resolution: File format: TIFF Group 3 1D (*.tif) Resolution: Fine Fax Resolution (200 x 200 DPI) |
Available in ColorPlus, ColorPlus X1, TIFF, TIFF X1, Color Printer Drivers |
|
Convert to Fax Fine Resolution 2: File format: TIFF Group 3 1D (*.tif) Resolution: Fine Fax Resolution (204 x 196 DPI) |
Available in ColorPlus, ColorPlus X1, TIFF, TIFF X1, Color Printer Drivers |
|
Convert to Fax Standard Resolution: File format: TIFF Group 3 1D (*.tif) Resolution: Standard Fax Resolution (204 x 98 DPI) |
Available in ColorPlus, ColorPlus X1, TIFF, TIFF X1, Color Printer Drivers |
|
Archive document to low resolution TIFF: File format: TIFF Group 4 (*.tif) Resolution: Low Resolution (200 x 200 DPI) |
Available in ColorPlus, ColorPlus X1, TIFF, TIFF X1, Color Printer Drivers |
|
Convert to display optimized TIFF: File format: TIFF Group 4 (*.tif) Resolution: Medium Resolution (300 x 300 DPI) |
Available in ColorPlus, ColorPlus X1, TIFF, TIFF X1, Color Printer Drivers |
|
Archive document to low resolution PDF: File format: PDF (*.pdf) Resolution: Low Resolution (200 x 200 DPI) Black and White |
Available in ColorPlus, ColorPlus X1, PDF, PDF X1 Printer Drivers |
|
Convert documents to black and white PDF: File format: PDF (*.pdf) Resolution: Medium Resolution (300 x 300 DPI) Black and White |
Available in ColorPlus, ColorPlus X1, PDF, PDF X1 Printer Drivers |
|
Convert to display optimized PDF: File format: PDF (*.pdf) Resolution: Medium Resolution (300 x 300 DPI) 24 bit color |
Available in ColorPlus, ColorPlus X1, PDF, PDF X1 Printer Drivers |
|
Convert to display optimized JPEG: File format: JPEG (*.jpg) Resolution: Medium Resolution (300 x 300 DPI) 24 bit color |
Available in ColorPlus, ColorPlus X1, Color Printer Drivers |
|
Convert to display optimized BMP: File format: Microsoft Bitmap (*.bmp) Resolution: Medium Resolution (300 x 300 DPI) 24 bit color |
Available in ColorPlus, ColorPlus X1, Color Printer Drivers |
|
Merge documents to a single PDF: File format: PDF (*.pdf) Resolution: Medium Resolution (300 x 300 DPI) Black and White Enable Combine/Merge multiple documents into a single file |
Available in ColorPlus, ColorPlus X1, PDF, PDF X1 Printer Drivers |
|
Merge documents to a single TIFF: File format: TIFF Group 4 (*.tif) Resolution: Low Resolution (200 x 200 DPI) Enable Combine/Merge multiple documents into a single file |
Available in ColorPlus, ColorPlus X1, TIFF, TIFF X1, Color Printer Drivers |
|
OCR documents and convert to PDF: File format: PDF (*.pdf) Resolution: Medium Resolution (300 x 300 DPI) Black and White Enable OCR |
Available in ColorPlus, ColorPlus X1, PDF, PDF X1 Printer Drivers |
|
OCR documents and convert to TIFF: File format: TIFF Group 4 (*.tif) Resolution: Low Resolution (200 x 200 DPI) Enable OCR |
Available in ColorPlus, ColorPlus X1, TIFF, TIFF X1, Color Printer Drivers |
|
Split multipage TIFF documents to single page: File format: TIFF Group 4 (*.tif) Resolution: Low Resolution (200 x 200 DPI) Enable Save each page as separate file |
Available in ColorPlus, ColorPlus X1, TIFF, TIFF X1, Color Printer Drivers |
|
Split multipage PDF documents to single page: File format: PDF (*.pdf) Resolution: Medium Resolution (300 x 300 DPI) Black and White Enable Save each page as separate file |
Available in ColorPlus, ColorPlus X1, PDF, PDF X1 |
