The recognition is preceeded with automatic image quality enhancement that decreases the noiseness of lines and compensates the small slip of rows.
Apart from the binarity or non-binarity of the barcodes, decoding methods always start with determining the width of each bar and space and making a distribution method of them. For perfect barcodes these methods always contain only the number of width type non-zero values (e.g. a perfect binary barcode’s bar distribution method has only 2 different places (widths) with non-zero values). Unfortunately a scanned barcode is never perfect, so these distribution methods are much more complex.

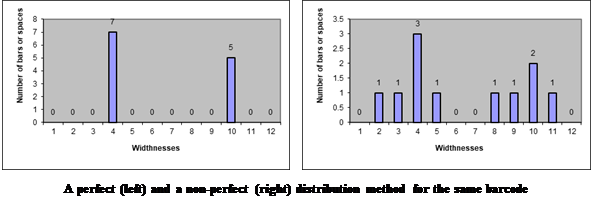

In the following example let’s assume that a binary barcode is available with 7 thin (width = 4) and 5 narrow bars (or spaces) (width = 10). The charts below show the distribution method of a perfect and a non perfect (e.g. scanned) barcode’s bars (or spaces).
For a perfect non-binary barcode the number of non-zero places is 3 (or sometimes more), and there are different ways to detect the logical widths (thin, narrow, etc.) of the bars (or spaces).
