Save As Dialog

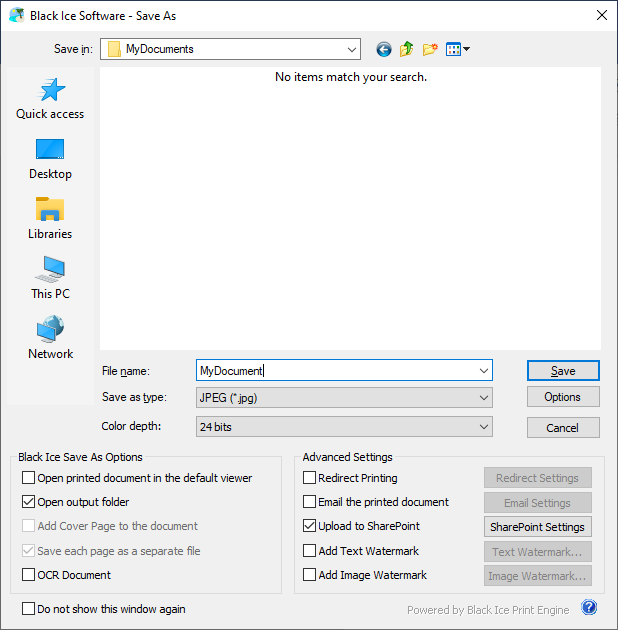

When the ‘Enable Save As’ option is selected in the Printing Preferences or Black Ice Printer Manager, the Save As Dialog will be displayed each time before printing the file. The Save As Dialog is very similar to the regular Windows Save As Dialog, except it contains additional Black Ice options:

Options button - For certain file formats additional settings can be specified. Available options will change according to the selected file format:

File Format

Options include

JPEG (*.jpg)

JPEG Loss Ratio

For more information,  please refer to JPEG Settings



JPEG LAB (*.jpg)

PNG (*.png)



GIF (*.gif)



TIFF JPEG (*.tif)



TIFF Group 4 (*.tif)

Internet TIFF Format, Add Page Numbering Tag, Reverse Bit Order



For more information,  please refer to TIFF Settings



TIFF Group 3, 1 Dimension (*.tif)

TIFF Group 3, 1 Dimension, with Fillbits (*.tif)

TIFF Group 3, 2 Dimension (*.tif)

TIFF Packed (*.tif)



TIFF Lempel-Ziv & Welch (*.tif)



TIFF Uncompressed (*.tif)



TIFF for CISCO (*.tif)



TIFF for Dialogic boards (*.tif)



TIFF for NMS boards (*.tif)



TIFF for Gammalink boards (*.tif)



HTML - editable (*.htm)

Display Options, CSS Options, Content Output directory, Save pages to separate files, Fonts

For more info please refer to HTML Settings



HTML with GIF (*.htm)



HTML with PNG (*.htm)



HTML with JPEG (*.htm)

JPEG Loss Ratio



For more information,  please refer to JPEG Settings



HTML with BMP (*.htm)



XML with GIF (*.xml)



XML with PNG (*.xml)



XML with JPEG (*.xml)

JPEG Loss Ratio



For more information,  please refer to JPEG Settings



XML with BMP (*.xml)



Microsoft Bitmap (*.bmp)



PCX (*.pcx)



INTEL DCX (*.dcx)



IBM MMR IOCA (*.tmp)



CALS (*.cg4)





Color Depth - The color depth setting for the generated image. The value can be 1 bit, 8 bits, 8 bits grayscale and 24 bits. Certain file formats do not support all the available color depth options.

Open printed document using the default viewer - When enabled, the generated output document will be opened in the default program for that file type (extension).

Open output folder - If this option is enabled, the designated output directory will open in Windows Explorer after the print job is completed.

Save each page as separate file - If this option is enabled, the printer driver saves every printed page in a separate file. If disabled, every page is generated into a single file. Please note that certain file formats, for example, JPEG, do not support multiple pages. In these cases, this option is not available.

Save As Options - Advanced Settings
