High Resolution (DPI) Support
Version number:


The Black Ice Printer Drivers support a wide range of resolutions, both predefined, commonly used resolutions as well as the option to specify any custom resolution between 50 and 3000 DPI. The X and Y DPI settings can also be independently set, for example the X resolution can be set to 204 DPI while the Y resolution can be set to 98 DPI. Below is a list of the commonly used DPI settings available in the Black Ice printer drivers:

  • 100 x 100 DPI
  • 200 x 200 DPI
  • 204 x 98 DPI - the Standard FAX mode ( Draft )
  • 204 x 196 DPI - the Fine FAX mode ( Low )
  • 300 x 300 DPI
  • 600 x 600 DPI

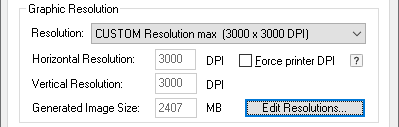

  • Custom resolution - up to 3000x3000 DPI

The custom resolution can be set to any value ( horizontal and vertical ) up to 3000 x 3000 DPI and not less then 50 x 50 DPI

The Black Ice printer drivers also include a Force printer DPI feature which will post process the generated image to be a specific DPI value.
